Table Top Micro tubes High Speed Centrifuge—Cialan

Cialan is the first tier manufacturer and supplier of benchtop centrifuges in China, we provide horizontal centrifuge ,benchtop refrigerated centrifuge and professional after-service.

16000rpm

Max Speed

6×100ml

Max volume

20600×g

Max RCF

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

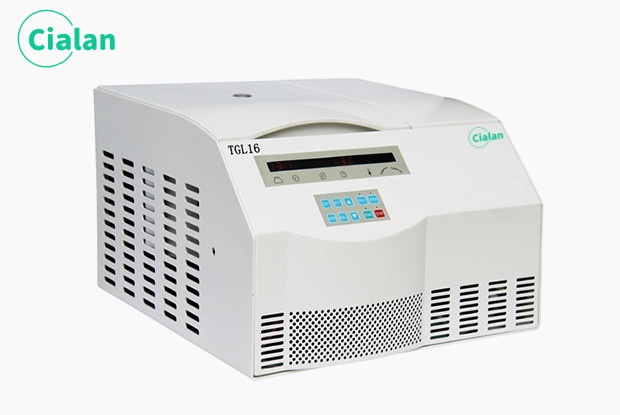

Refrigerated Centrifuge TGL16 table Top High Speed type uses centrifugal force to separate liquid and solid particles or components in liquid-liquid mixtures.

Characteristics

Adopts brushless variable frequency motor, large torque, maintenance-free, no dust pollution, fast lifting speed.

Adopts imported fluorine-free compressor, dual-cycle refrigeration, easy and comfortable alternation of hot and cold, no environmental pollution, and precise temperature control.

Adopts microprocessor control, digital display of temperature, speed, time, relative centrifugal force (RCF) during operation, fast lifting speed, easy operation. The operating parameters can be edited.

The memory stores 10 programs, and 10 acceleration and deceleration speeds are optional.

Automatic electric lock cover, overspeed, overtemperature, and unbalance protection.

High-quality steel centrifuge body, stainless steel inner cavity, built-in stainless steel explosion-proof protective cover, triple protection, safe and reliable.

The rotor and the main shaft are connected by a special spring cone sleeve, which is convenient and quick to clamp and has no directionality.

It has a pre-cooling function to obtain an ideal centrifugal effect.

Tags:

Refrigerated centrifuge

Parameter

Model	TGL16
Max. Speed	16000rpm
Max. RCF	20600×g
Max. Capacity	6×100ml
Time Range	1~9h59min
RPM/RCF Convert	Yes
Noise (dB)	≤ 58
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (L x W x Hmm)	610×570×370mm
Net Weight(Kg)	82KG
