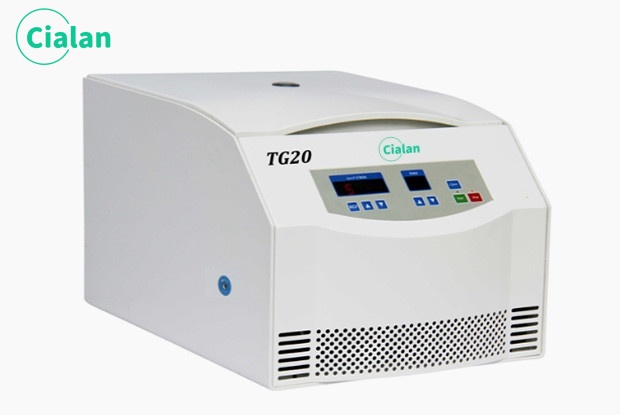

Table Top Micro Tubes High Speed Centrifuge—Cialan

Cialan is the first tier manufacturer and supplier of industrial centrifuges in China, we provide largest centrifuge, large centrifuge machine, large volume centrifuge and professional after-service.

21000rpm

Max Speed

6×100ml

Max volume

30910×g

Max RCF

Quote Now Send Email

Share:

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Table Top High Speed Centrifuge TG20 uses centrifugal force to separate components in liquid and solid particles or liquid and liquid mixtures.

Characteristics

Adopts brushless variable frequency motor, simpler structure, more reliable performance, longer life and quieter operation.

The rotor is connected to the main shaft through a special tapered sleeve, which makes loading simple and fast, non-directional, safe and reliable.

Automatic electric lock cover, overspeed, overtemperature protection and unbalance protection.

Microprocessor control. Digital display of time, speed and relative centrifugal force (RCF).

10 programs are stored in the memory, and 10 acceleration and deceleration speeds are available.

Three-layer protective steel cover, stainless steel inner cavity, safe and reliable.

Tags:

High speed centrifuge

Parameter

Model	TG20
Max. Speed	21000rpm
Max. RCF	30910×g
Max. Capacity	6×100ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤60
Temperature	Normal
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	513×370×320mm
Net Weight/Gross weight(Kg)	43KG/60KG
