Large Capacity Triple Blood Bag Refrigerated Centrifuge — Cialan

Cialan is the first tier manufacturer and supplier of pharma centrifuge in China, we provide low temperature centrifuge, large capacity refrigerated centrifuge and professional after-service.

5000rpm

Max Speed

4×800ml

Max volume

4730×g

Max RCF

Quote Now Send Email

Share:

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

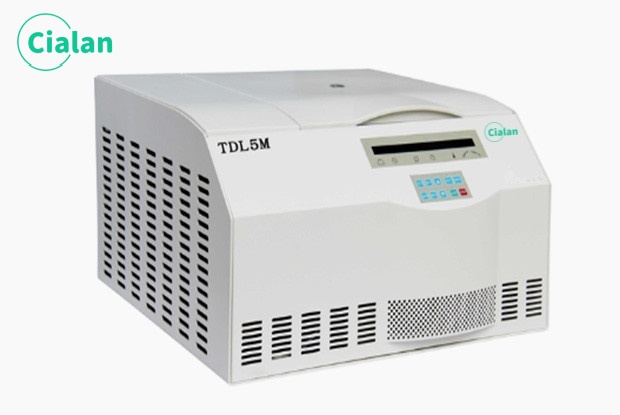

Large Capacity Refrigerated Centrifuge TDL5M can accommodate 4 450 ml blood bags, 1 of which is a desktop blood bag, with a favorable price.

Characteristics

Adopts brushless variable frequency motor, large torque, maintenance-free, no dust pollution, fast speed increase and decrease.

Adopts imported fluorine-free compressor, dual-cycle refrigeration, easy and comfortable alternation of hot and cold, no environmental pollution, and precise temperature control.

Adopts microprocessor control, digital display of speed, time, relative centrifugal force (RCF) during operation, fast speed increase and decrease, easy operation. The operating parameters can be edited.

Automatic electric lock cover, overspeed protection, overtemperature protection and unbalance protection.

Memory stores 10 programs, 10 acceleration and deceleration speeds are available.

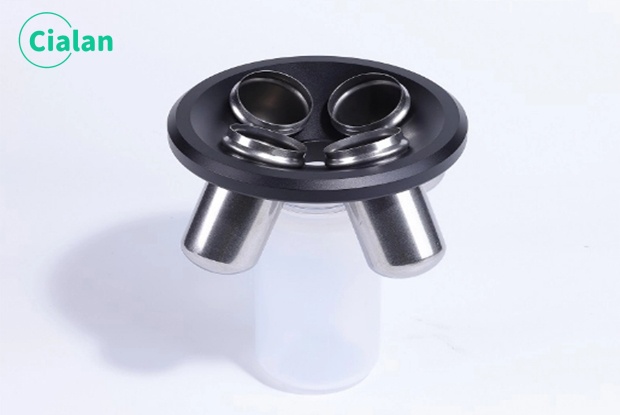

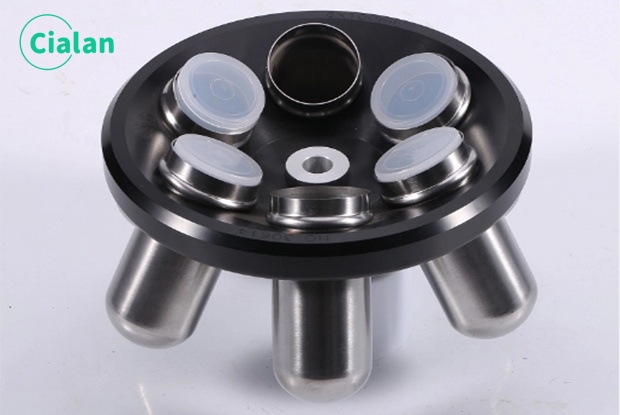

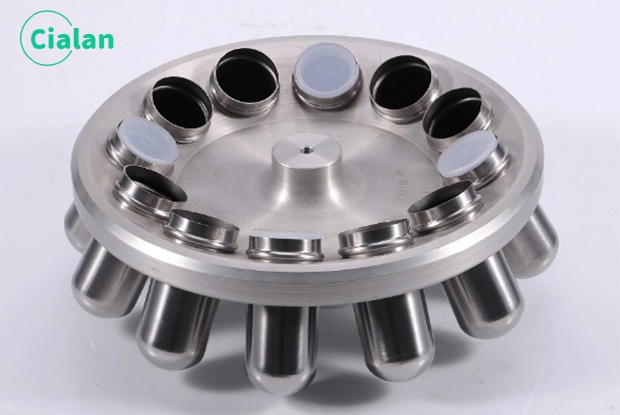

A variety of rotors are available, and adapters can be designed according to experimental requirements.

The rotor and the main shaft are connected by a special cone sleeve, which is simple and fast to load and non-directional.

Three-layer protective steel cover to obtain ideal centrifugal effect.

Tags:

Refrigerated centrifuge

Parameter

Model	TDL5M
Max. Speed	5000rpm
Max. RCF	4730×g
Max. Capacity	4×800ml( 4*450ml blood bags)
Time Range	0~99h59min
RPM/RCF Convert	Yes
Noise (dB)	≤ 65
Temperature	-20℃-40℃
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	±1℃
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Size (W x D x Hmm)	700×715×420mm
Net Weight(Kg)	125KG
