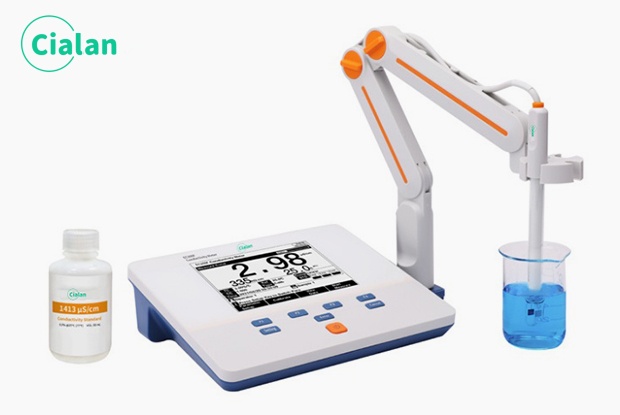

EC300F Benchtop Conductivity Meter

Water Conductivity meter is to measure the level of conductivity in solutions.
EC/Temp
Parameters
±1.0% FS
Accuracy
Up to 3
Calibration Points
Share:
Product Details
Water Conductivity meter is to measure the level of conductivity in solutions.

 Includes
1.DJS-1VTC EC electrode
2.1413μS/cm EC standard solution, 50ml, 1 vial
3.Electrode stand

Feature
High resolution LCD display, 5.7 inches.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
Data Storage 500 sets for each parameter (GLP-compliant).
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-3 points calibration with Standard Recognition.
Temperature compensation type (none, linear, pure water).
Support for USB or RS-232 communication.
Auto-hold feature senses and locks the measurement endpoint.
Parameter
Model EC300F
Parameters EC/Temp.(Resistivity/TDS/Sal.)
Conductivity Range 0.000 μS/cm to 1000 mS/cm
Resolution 0.001 μS/cm minimum,
various with range selection
Accuracy ±1.0% FS
Reference Temperature 20, 25 ºC
Calibration Points Up to 3
Standard Recognition 84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity Range 5.00 Ω·cm~20.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±1.0% FS
TDS Range 0.00 ppm ~300 ppt
Resolution 0.01ppm minimum, various with range selection
Accuracy ±1.0% FS
Salinity Range (0.00~8.00)%
Resolution 0.01%
Accuracy ±0.2%
Temperature Range -5.0 to 110 ºC, 23.0 to 230 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ±0.2ºC
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 500 results each
GLP Features Yes
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB PC
RS 232 printer
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC9V output
Dimensions 242×195×68 mm
Weight 900g (1.98 lb)
