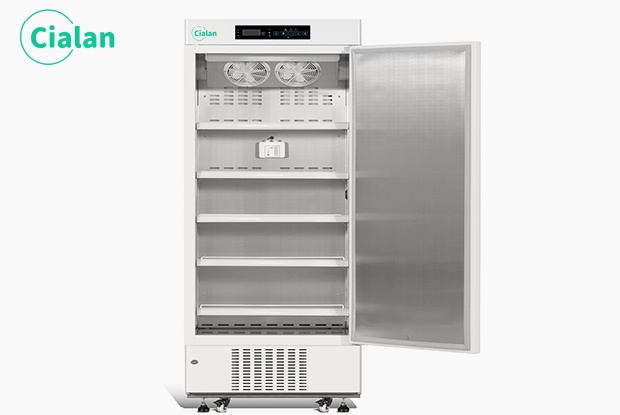

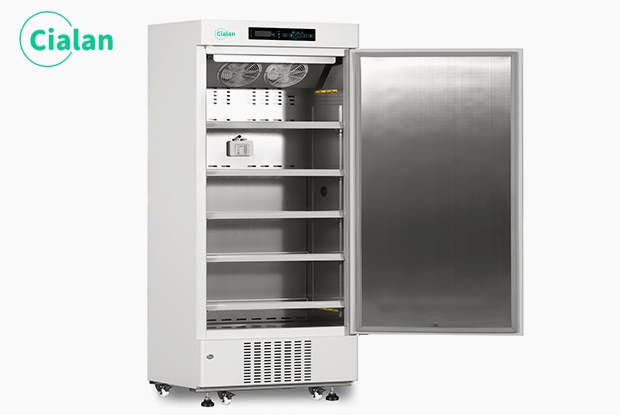

2℃～8℃ Explosion-Proof Spark-Free Pharmacy Medical Refrigerator Freezer Fridge — Cialan fridge — Cialan

Cialan is the first tier manufacturer and supplier of lab refrigerator in China, we provide vaccine deep freeze, hospital medical fridge and professional after-service.

2-8℃

Temperature Range

416L

Capacity

Explosion proof

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Explosion-Proof refrigerator and freezer adopts an intrinsically safe structure, has extremely high temperature stability and explosion-proof performance, and is especially suitable for storing flammable and explosive substances.

This product is suitable for places with temperature control requirements in explosive environments such as petrochemicals, laboratories, metallurgy, medicine, textiles, food, bioengineering, pharmaceuticals, warehouses, aerospace engineering, and military industry; dangerous gas places in Zone 1 and Zone 2; IIA, IIB, T1-T4 explosive gas or steam environments.

Characteristics

Intrinsically safe explosion-proof: The signal and power safety barriers are installed in the explosion-proof control box and are led to the control panel through the explosion-proof stuffing box. The display panel adopts an intrinsically safe circuit design.

Explosion-proof type A: The explosion-proof control box is equipped with a control panel, a PT100 signal safety barrier, a display panel signal safety barrier, and a display panel power safety barrier.

Explosion-proof type B: The explosion-proof control box is equipped with a shaded pole fan, a motor, an explosion-proof stuffing, and a lead-out cable.

Casting type: The compressor adopts casting type explosion-proof type and is equipped with a temperature fuse for temperature control.

Tags:

2℃～8℃ Pharmacy refrigerator

Parameter

Model	CNC-5V416A
Temperature Range	2℃~8℃
Capacity	416L
Defrost:	Auto
Cooling Type	Forced Air Cooling System
Temp. Controller	Microprocessor
Power Supply	220V/50Hz or 110V/60HZ
Ambient Temperature	10℃~32℃
Shelf/drawer QTY	Wired shelf/5
Refrigerant	R290
Noise(db)	46
Compressor QTY	1
Sensor	NTC
Display	LED digital display
Internal material	Coated steel
Insulation	CFC-free PURF
Power failure backup system(alarm)	8 hours
Door type/Qty	Self-closing Solid/1
Access port Qty/diameter	1/25mm

Components of explosion-proof refrigerator

Application of low temperature freezer and refrigerator

Cases of low temperature freezer and refrigerator

Cialan types of low temperature freezer and refrigerator
