Combined Refrigerator Freezer

Medical Combined Refrigerator And Freezer For Vaccine — Cialan

Cialan is the first tier manufacturer and supplier of lab freezers and refrigerators in China, we provide lab freezers and refrigerators, pharmaceutical refrigerator with freezer, compact pharmacy refrigerator and professional after-service.

2℃～8℃

Upper

-10℃～-25℃ /-20℃～-40℃

Lower

Upper: Auto, Lower: Manual

Defrost

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Medical refrigeration and freezing machine is widely used in hospitals, blood stations and laboratories. This product adopts dual chambers, dual display screens, dual control systems, and is equipped with two independent compressors and refrigeration systems. The temperature of both chambers can be adjusted independently.

Characteristics

Multi-scenario application: Dual chamber design, small footprint

Large LED display screen: Easy to observe and operate, built-in USB interface

Heated glass design: Quick demisting, no condensation

Accurate temperature control: Temperature control accuracy of 0.1℃

Coil evaporator: Better performance, more convenient maintenance

Coil Evaporator:Better performance, Easy maintenance

6 Alarm type: Sound and light alarm

Suction circulation system: Smaller temperature fluctuations, higher temperature uniformity

Variable space: Shelves and drawers.

Tags:

-25℃-40℃Combined Refrigerator And Freezer

Parameter

Model	CNRF-25V300	CNRF-25V368	CNRF-40V368	CNRF-25V528	CNRF-40V528
Technical data	CNRF-25V300	CNRF-25V368	CNRF-40V368	CNRF-25V528	CNRF-40V528
Temperature Range	Upper 2℃～8℃ Lower -10℃～-25℃ /-20℃～-40℃
Defrost	Upper:Auto Lower:Manual
Cooling Type	Upper :Forced Air Cooling Lower: Direct cooling
Temp. Controller	Microprocessor
Ambient Temperature	10℃~32℃
Temp Fluctuation	±1℃
Data Logger	Optional
Shelf/Drawer	Shelves2 and Drawers3	Shelves2 and Drawers6	Shelves2 and Drawers6	Shelves4 and Drawers18	Shelves 4 and Drawers*18
Temp.	Upper: 2℃～8℃ Lower: -10℃～-25℃	Upper: 2℃～8℃ Lower: -10℃～-25℃	Upper: 2℃～8℃ Lower: -20℃～-40℃	Upper: 2℃～8℃ Lower: -10℃～-25℃	Upper: 2℃～8℃ Lower: -20℃～-40℃
Chamber/Out Shell	HIPS/SPCC sprayed steel	SPCC sprayed steel/ SPCC sprayed steel	Color sprayed steel/ Color sprayed steel	Color sprayed steel/ Color sprayed steel	Color sprayed steel/ Color sprayed steel
Capacity（L/cu.ft)	Upper: 198/6.99 Lower: 102/3.60	Upper: 183/6.46 Lower: 185/6.53	Upper: 183/6.46 Lower: 185/6.53	Upper: 273/9.64 Lower: 255/9.00	Upper: 273/9.64 Lower: 255/9.00
Door/Type /QTY	Upper: Solid Door Lower: Solid Door	Upper: Foamed-Glass Door Lower: Solid Door	Upper: Foamed-Glass Door Lower: Solid Door	Upper: Foamed-Glass Door Lower: Solid Door	Upper: Foamed-Glass Door Lower: Solid Door
Dimensions(WDH)(mm)	6506201980	7208301870	7208301870	9008181875	9008181875

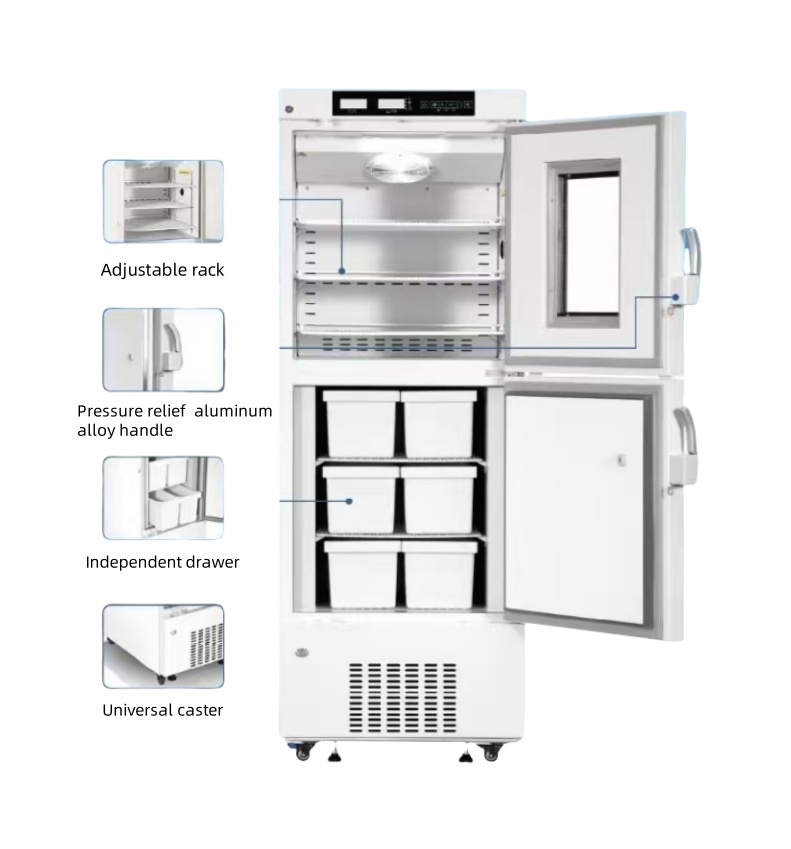

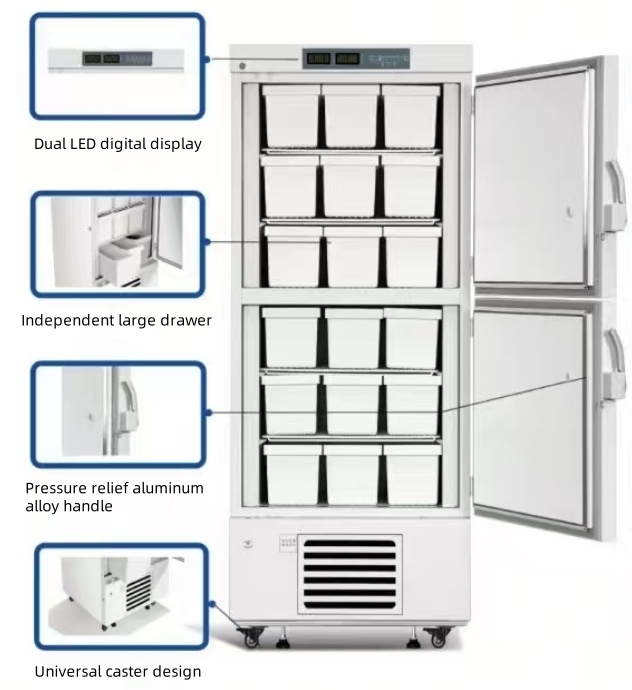

Components of combined refrigerator and freezer

Application of low temperature freezer and refrigerator

Cases of low temperature freezer and refrigerator

Cialan types of low temperature freezer and refrigerator
