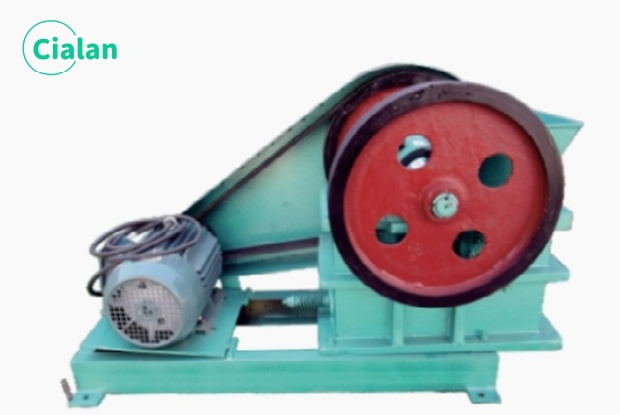

Jaw crusher

The laboratory jaw crusher is mainly used for medium particle size crushing of various ores and bulk materials.

100x60,100x100,150x125

Sizes

6-10mm

Output size

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

1.The laboratory jaw crusher (referred to as jaw crusher for short) is mainly used for medium particle size crushing of various ores and bulk materials.

2.It can crush materials with compressive strength not greater than 320Mpa, including coarse crushing and fine crushing. PE series jaw crusher has complete specifications, and its feeding granularity is 125mm~1200mm. It is a primary powder crushing equipment.

3.The equipment is mainly used for coarse, medium and fine crushing of limestone, calcium carbide, calcium carbide slag, shale, basalt, river pebbles, bluestone and other ores. It has good effect in cement plants, gravel plants, stone plants, thermal power plants, desulfurization plants, calcium carbide plants, and is widely used in mining, metallurgy, chemicals, building materials, water conservancy, transportation and other industries.

Characteristics

The crushing ratio is up to about 15, and the particle size is uniform;

The gasket type discharge port adjusting device has a large adjusting range and reliable operation;

The crushing chamber is deep and free of dead zone, improving the feeding capacity and output;

The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small.

The hyperboloid jaw plate has less wear. Under the same process conditions, the life of the jaw plate can be extended more than 3-4 times, especially for highly abrasive materials;

High production efficiency and low energy consumption. Compared with ordinary fine jaw breaking, the processing capacity is 20-35% higher than that of the same specification, and the energy consumption is 15-20% lower;

The main structure of the jaw crusher in the laboratory: frame, eccentric shaft, large belt pulley, flywheel, side guard plate, elbow plate, back seat of the elbow plate, clearance adjusting screw, return spring, fixed jaw plate and movable jaw plate, among which the elbow plate also plays a role of insurance. The crushing mode of this series of jaw crusher is curved extrusion type.

The motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger, thus pushing the movable jaw plate closer to the fixed jaw plate.

At the same time, the materials are crushed by multiple crushing such as extrusion, rubbing and grinding. When the movable jaw moves downward, the included angle between the toggle plate and the movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring.

At this time, the crushed materials are discharged from the lower mouth of the crushing chamber. With the continuous rotation of the motor, the crusher jaw is used for periodic crushing and discharging to achieve mass production.

Tags:

Parameter

Model	Process capacity(kg/H)	Feeding sample size(mm)	Output powder size(mm)	Main shift rotation speed(r/min)	Power (KW)	Voltage
100x60	230-400	50	6-10	650	1.5	380V,3P
100x100	200-1800	80	3-25	600	2.2
125x100	200-1800	80	5-25	50	3
150x125	400-3000	100	6-38	500	3
