Product Details

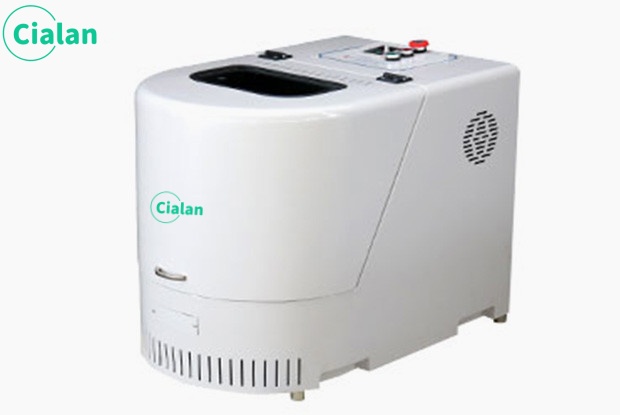

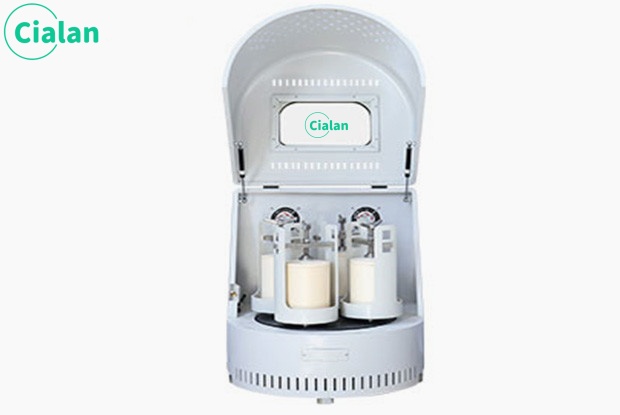

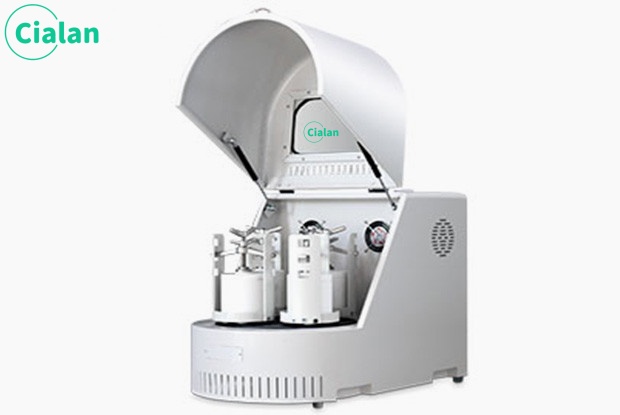

Vertical Semi-circle Planetary Ball mill

Shell of the machine is designed to be in square style that is stamped and formed by precise molding with delicate, generous and stable outlook.Planetary disc is made by whole casting and machined parts are made by NC machining process, drive gears are made precisely from special materials.All these factors ensure stability and low noise of machine when running at high speed.Pressing devise of pots is convenient to operate, safe and reliable.

Characteristics

The vertical semicircular planetary mill is widely used in geological, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.

It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalate, lithium manganate, catalysts, phosphors, long afterglow phosphors, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC Production fields of thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.

Tags:

Planetary ball mill for laboratory

Parameters

Technical features of vertical semi-circle planetary ball mill

Transmission Mode	Gear drive or belt drive
Operation Mode	2 or 4 mill pots can be used for each grinding
Max Load Capacity	2/3 of each pot volume
Feed Size of Materials	Soft and crispy materials ≤ 10mm Other hard materials ≤ 3mm
Output Granule	Min granularity can be achieved to 0.1μm
Volume of grinding pot	0.05L/pot-50L/pot. Total volume:0.2L-200L.

Technical parameters of vertical semi-circle planetary ball mill

Model	Capacity (L)	Matched jar	Power (kw)	Time setting (min)	Alternate running time (min)	Adjustable speed
Model	Capacity (L)	Matched jar	Power (kw)	Time setting (min)	Alternate running time (min)	Revolution (rpm)	Rotation (rpm)
CNSC-0.4L	0.4	50-100ml	0.25	1-9999	1-999	45-435	90-870
CNSC-2L	2	50-500ml	0.75	1-9999	1-999	35-335	70-670
CNSC-4L	4	250-1000ml	0.75	1-9999	1-999	35-335	70-670
CNSC-8L	8	1-2L	1.5	1-9999	1-999	35-290	70-580
CNSC-10L	10	1-2.5L	1.5	1-9999	1-999	35-290	70-580
CNSC-12L	12	1-3L	1.5	1-9999	1-999	35-290	70-580
CNSC-16L	16	2-4L	3	1-9999	1-999	30-255	60-510

Type NO.	Quantity	Noise (dB)	Power supply	Speed control mode	Remarks
CNSC-0.4A	4pcs	58±5	220V50Hz	Frequency Control	Matched with vacuum mill pots 50ml
CNSC-2A	4pcs	60±5	220V50Hz	Frequency Control	Matched with vacuum mill pots from 50ml to 250ml
CNSC-4A	4pcs	60±5	220V50Hz	Frequency Control	Matched with vacuum mill pots from 50ml to 1000ml
CNSC-8A	4pcs	60±5	220V50Hz	Frequency Control	Matched with vacuum mill pots from 50ml to 1500ml
CNSC-10A	4pcs	60±5	220V50Hz	Frequency Control	Matched with vacuum mill pots from 1L to 2L
CNSC-12A	4pcs	60±5	220V50Hz	Frequency Control	Matched with vacuum mill pots from 1L to 2L
CNSC-16A	4pcs	65±5	380V50Hz	Frequency Control	Matched with vacuum mill pots from 1L to 3L

Parts of vertical semi-circle planetary ball mill

Available Mill jars/pots/tanks and selection.

Available ball mill balls, size and selection.

Matching ways for mill jars and mill balls.

Selection of planetary ball mill.

Option table of machine style and configure of special function.
