Light Production Lab Stirred Ball Mill For Alumina Grinding— Cialan

Cialan is the first tier manufacturer and supplier of lab ball mill machine in China, we provide ball mill equipment, ball miller machine, mini ball mill machine and professional after-service.

1L~600L

Capacity

0.0001

Fineness of finished

Fine

Pulverization degree

Product Details Characteristics Parameters Message

Quote Now Send Email

Product Details

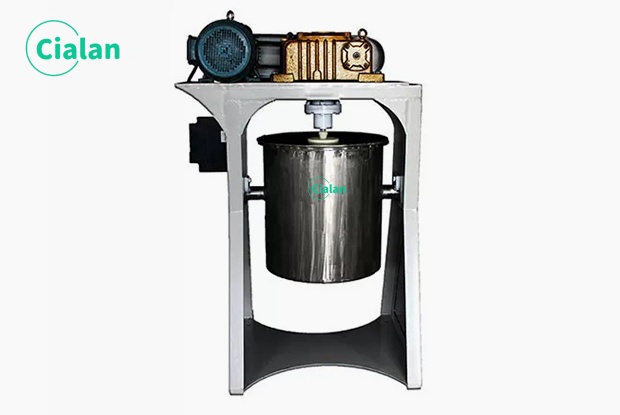

Stirred ball mill mainly consists of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. lts advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.

It's widely applied to in fields of zirconium silicate, zirconia,aluminium oxide,ceramic.chemical. electronic material, magnetic material, paper-making, painting, non-metal minerals, new material, coating, graphite, calcium carbonate,medicine, and so on.

Characteristics

When machine rotates with high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer grinding powder is, vice versa. A proper match ratio among various of grind media and proper adjustment of rotation speed can get better grinding effect.

High utilization rate of energy, energy saving.

Granularity is adjustable by adjusting grinding time.

Less vibration, low noise. Simple structure, easy operation

Meet requirements of various processes, realize continuous or intermittent production.

Jar with jacket, easy to control the grinding temperature.

Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.

A variety of grinding jars in different materials is available for customer's option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.

Tags:

Stirred ball mill

Parameters

Technical features of stirred ball mill

Model No.	Rotate Speed (rpm)	Volume (L)	Load Capacity (L)	Power Supply (KW/V)	Available Jars	Feed Size (mm)	Output Granularity (µm)	Speed Control Mode	Category
CNJM-1L	50-1400	1	0.35	0.37KW/220V	Stainless steel Nylon Alumina ceramic PU Zirconia Agate PTFE	≤5mm	≤1µm	Frequency speed adjuster	Laboratory Scale
CNJM-2L	50-1400	2	0.7	0.37KW/220V		≤5mm	≤1µm
CNJM-3L	50-1400	3	1.05	0.37KW/220V		≤5mm	≤1µm
CNJM-5L	60-560	5	1.75	0.75KW/220V		≤5mm	≤1µm	Frequency speed adjuster or Fixed speed setting for buyer's option	Small Type
CNJM-10L	60-560	10	3.5	1.5KW/220V		≤10mm	≤1µm
CNJM-15L	60-380	15	5.25	2.2KW/380V		≤10mm	≤1µm
CNJM-20L	60-380	20	7	2.2KW/380V		≤10mm	≤1µm		Light Type
CNJM-30L	60-310	30	10.5	3.0KW/380V	Carbon steel Stainless steel Nylon liner PU liner Alumina ceramic liner PTFE liner	≤10mm	≤1µm
CNJM-50L	60-140	50	17.5	4.0KW/380V		≤10mm	≤1µm
CNJM-100L	60-140	100	35	7.5KW/380V		≤20mm	≤1µm		Industrial Type
CNJM-200L	60-110	200	70	11KW/380V		≤20mm	≤1µm
CNJM-300L	60-110	300	100	15KW/380V		≤20mm	≤1µm
CNJM-500L	60-90	500	170	18.5KW/380V		≤20mm	≤1µm
CNJM-600L	60-90	600	200	22KW/380V		≤20mm	≤1µm
