Lab Heavy Light Vibration Ball Mill For Chemical Grinding— Cialan

Cialan is the first tier manufacturer and supplier of vibratory ball mill in China, we provide laboratory ball mill machine, high energy ball mill, vibrating ball mill and professional after-service.

1L~100L

Capacity

0.0001

Fineness of finished

Fine

Pulverization degree

Product Details Characteristics Parameters Message

Quote Now Send Email

Product Details

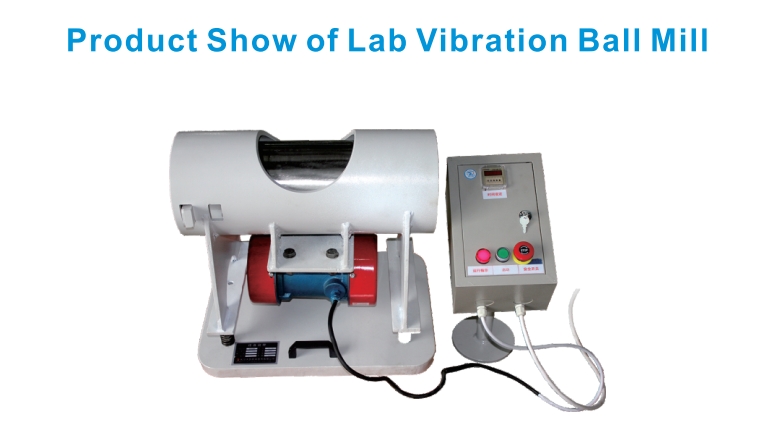

Vibration ball mill is a new model of powder equipment with high efficiency, including three models of single jar, double jars and three jars. It's easy and convenient to operate, reliable to work, easy to clean, adaptable to different working condition, lt can be used for wet and dry grinding without pollution. The machine is widely applied to the fields of electronics, ceramics, chemicals, powder metal, tungsten, Calcium carbide, rubber compounds, magnetic materials, pharmaceutical and high-frequency porcelain materials. Liners in materials of stainless steel, ceramic, zirconia, glazed block, nylon, PTFE, food-standard rubber and polyurethane are available for customers' option.

Characteristics

Vibration ball mill consists of shelf, under-frame, vibration generator, spring, cylinder, motor and so on. When the machine starts up, the motor drives the vibration generator to make continuous vibration, which makes cylinder doing small amplitude and continuous movement with high frequency. Because of self rotation and relative movement of the grind media, the materials inside the cylinder are frequently crushed, stripped and ground into uniform powder.

It has larger capacity than other ball mills.

It has simple structure. The machine produces different powder in different granularity by means of adjusting vibrating amplitude, frequency, grind medias and match ratio.

Vibration mill with jacket makes grinding temperature adjustable..

Vibration with griddle and collection device can work continuously.

Easy and convenient to be operated, reliable performance, easy to clean and adaptable to any working condition.

Dry and wet grinding without pollution. Light weight, small size and high efficiency.

Customized order is acceptable.

Tags:

Vibrating ball mill

Parameters

Technical features of vibration ball mill

Type	Jar	Load	Motor	Material of	Feed	Output	Category	Power
Type	Volume(L)	Capacity(L)	Power(KW)	Grinding Barrel	Size(mm)	size(μm)	Category	Supply
CNZM-1L	1	0.5	1.1	Stainless steel Nylon Alumina ceramic Polyurethane Zirconia Agate PTFE etc	≤5	≤1	Lab scale vibration ball mill	380V
CNZM-2L	2	1	1.1		≤5	≤1		380V
CNZM-3L	3	1.5	1.1		≤5	≤1		380V
CNZM-5L	5	2.5	1.1		≤5	≤1		380V
CNZM-10L	10	5	1.5		≤10	≤1	Light Type	380V
CNZM-15L	15	7.5	1.5		≤10	≤1		380V
CNZM-20L	20	10	1.5		≤10	≤1		380V
CNZM-50L	50	25	3	Carbon steel and lined with nylon, PTFE polyurethane	≤10	≤1		380V
CNZM-100L	100	50	4	Carbon steel and lined with nylon, PTFE polyurethane	≤20	≤1	Large Type	380V
Materials of Jars(1-20L): Stainless steel, agate, nylon, corundum, zirconia, PTFE.
Materials of Jar(30-200L): Carbon steel, stainless steel. Optional liners have nylon, PU, PTFE, corundum.
